| Herkunftsort: | China |
| Markenname: | DYLINK |
| Modellnummer: | SW1801D |
| Min Bestellmenge: | 1 Satz |
|---|---|
| Verpackung Informationen: | Holzkisteverpackung |
| Lieferzeit: | 15 Tage, nachdem der Vertrag unterzeichnet worden ist |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 1000sets |
| Spezifikationen: | SW1801D | Computer-Verbindungen: | 8 |
|---|---|---|---|
| Wirts-Verbindungsstücke: | Frau 8x DVI; Art b-Frau 8x USB | Maximale digitale Auflösungen: | x 1920 1200@60Hz |
| Funktionierendes TemperatureRange: | -40 | +55°C | Stromversorgung: | DC12V/1A |
| Maße (W x H x D): | 438mm x 153mm x 44.5mm | ||
| Markieren: | Weiblicher Schalter DVI KVM,8 Port-Schalter DVI KVM,Schalter des DVI-Gestell-Berg-KVM |
||

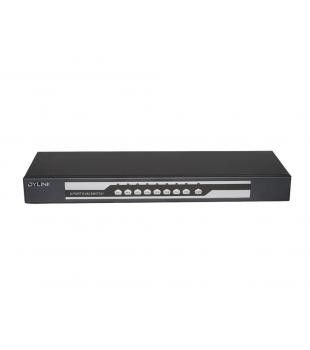

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
| Specifications | SW1801D |
| Computer Connections | 8 |

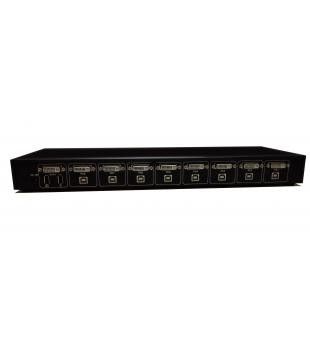

| Host Connectors | 8x DVI Female；8x USB Type B female； |
| Console Interfaces |
1x DVI Female； 2x USB Type A female； |
| DVI Specification | V1.0 |
| Maximum Digital Resolutions | 1920 x 1200@60Hz |
| LED Indicators | 8 |
| Port Selection | Push Button and Hotkeys |
| Power Supply | DC12V/1A |
| Operating TemperatureRange | -40 ～ +55°C |
| Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
