Mitsubishi GT1665M-VTBA 8.4 65536 Touch Screen IP67 100-240 VAC 640 X 480px HMI Touch Screen

Markenbezeichnung:	Mitsubishi
Modellnummer:	Die in Absatz 1 genannten Vorschriften gelten für die in Absatz 1 genannten Fahrzeuge.
MOQ:	1
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	Akkreditiv, Dokumenteninkasso, Dokument gegen Zahlung, Überweisung, Western Union, MoneyGram
Versorgungsfähigkeit:	Vorräte

Einzelheiten

Herkunftsort:

Japan

Zertifizierung:

Verpackung Informationen:

Neue Originalbox

Versorgungsmaterial-Fähigkeit:

Vorräte

Beschreibung des Produkts

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT1665M-VTBA
Plan Of Original:	Japan	Screen Size:	12.1 Type
Resolution:	SVGA: 800 X 600 [dot]	Display Size:	246 (W) X 184.5 (H) [mm]
Operating Ambient Temperature:	0 To 55 ° C	Storage Ambient Temperature:	-20 ° C To 60 ° C
Highlight:	hmi display touch screen , industrial hmi panels

Mitsubishi GT1665M-VTBA 8.4 65536 Touch Screen IP67 100-240 VAC 640 X 480px HMI Touch Screen

Product Details

SPECIFICATION

EUA Stock No30332	Brand/ManufacturerMitsubishi	Manufacturer Part NumberGT1665M-VTBA
Product typeTouch Screen Panel	SeriesGOT1000 Series	Display typeTFT
Display size8.4 in	Display resolution640 x 480 pixels	Number of colour65536
Display colourColour	Number of ports4	Port typeUSB;EtherNet;RS232;RS422/485

**Quick Detail**
Condition	New
Weight (kg)	1.7
Our Part Number	GT1665MVTBA
Height (mm)	190
Width (mm)	242
Depth (mm)	52
Manufacturer	Mitsubishi
Manufacturer Range	GOT
Manufacturer Series	GOT 1000
Supply Voltage	100-240 VAC
IP Rating	IP67
IP Rating Back	IP20
Display Colour	65536
Display Resolution	640 x 480
Display Size	8.4"
Display Type	TFT
Internal Memory (Mb)	15
Keyboard Type	Touch Screen
Screen Aspect	Landscape
Short Description	Mitsubishi GT1665M-VTBA 8.4, 65536, Touch Screen, IP67, 100-240 VAC, 640 X 480px

Specifications


Display unit	type	8.4", TFT, 65536 colours	10.4", TFT, 65536 colours	12.1", TFT, 65536 colours	15", TFT, 65536 colours
Display unit	resolution (pixel)	STB _: 800x600 VTB_: 640x480		800x 600	1024x 768
Power supply	A types	100–240 V AC
Power supply	D types	24 V DC
Memory capacity		15 MB			15 MB (expandable up to 57 MB)
Memory card		1 (CompactFlash)
Keyboard type		Touch-panel
Function keys		Touch keys
LED indicators		1 (POWER)
Interfaces		Ethernet (TCP/IP), RS232, RS422/485, USB, CF Slot
Multimedia capability		Optional
Real-time clock		Integrated
Network communication possibilities		Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H
Extension interface (communication/option unit)		1 port (max.5 units/4 channels)
IP rating ( front )		IP67 ¹

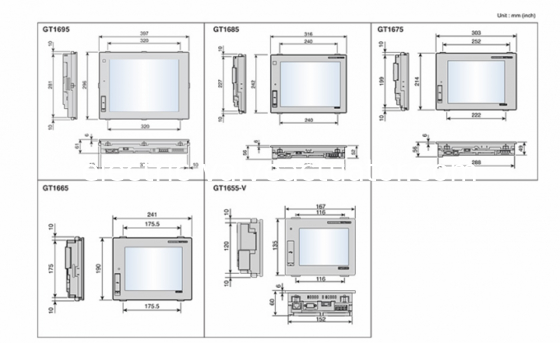

Dimensions (WxHxD) mm		241x190x52	303x214x49	316x242x52	397x296x61
Weight kg		1.7	2.1	2.7	5.0
Order information Art. no.		221949 221950 221951 221952	221945 221946 221947 221948	221360 221361	221358 221359

Accessories		Programming software, cables and interface adapters.
