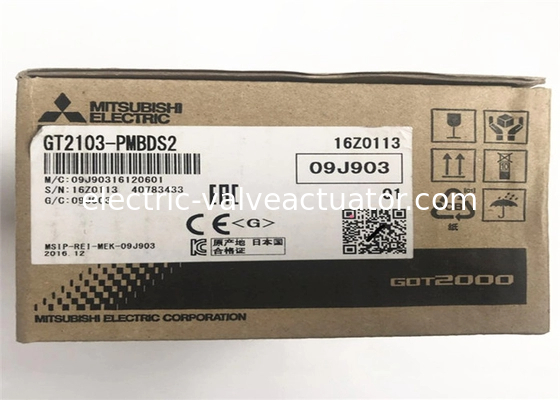

3.8″ GT2103-PMBDS2 Human Machine Interface Touch Screen Mitsubishi Electric

Markenbezeichnung:	Mitsubishi
Modellnummer:	Die in Absatz 1 genannten Anforderungen gelten für die in Absatz 1 genannten Fahrzeuge.
MOQ:	1
Preis:	Verhandlungsfähig
Zahlungsbedingungen:	Akkreditiv, Dokumenteninkasso, Dokument gegen Zahlung, Überweisung, Western Union, MoneyGram
Versorgungsfähigkeit:	Vorräte

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Japan

Zertifizierung:

Verpackung Informationen:

Neue Originalbox

Versorgungsmaterial-Fähigkeit:

Vorräte

Hervorheben:

GT2103-PMBDS2 Human Machine Interface

Mitsubishi Electric Human Machine Interface

3.8″ Human Machine Interface

Beschreibung des Produkts

Detailed Product Description

Brand:	Mitsubishi	Model Item:	GT2103-PMBDS2
Plan Of Original:	Japan	Screen Size:	3.8″
Internal Memory:	38MB	Resolution:	480 X 272 Pixels
Supply Voltage:	100-240VAC	Power Supply:	24 V Dc
Keyboard::	Touch Screen
Highlight:	hmi display touch screen , industrial hmi panels

GT2103-PMBDS2 Human Machine Interface Touch Screen Mitsubishi Electric

Specifications HMI GT2103-PMBDS2 Mitsubishi

- Product name: HMI GT2103-PMBDS2 Mitsubishi screen
- Power supply: 24V DC (+ 10%, -15%)
- HMI GT2103-PMBDS2 display type: TFT monochrome display
- Screen size: 3.8 "
- Resolution: 320 x 128 dots
- GT2103-PMBDS2 Mitsubishi size: 89.0 (W) × 35.6 (H)
- ROM memory: 3Mb
- Mitsubishi HMI GT2103-PMBDS2 with integrated communication: RS232, RS-422/485, USB (Device), SD card
- Software installation: GT Works3 Ver. 1.130L

Specifications

Manufacturer Series	GT21
Product Range	GOT2000
Display Type	LCD
Display Size	3.8 in
Display Colour	Monochrome
Number of Ports	4
Port Type	RS232, RS485/RS422, SD Card Interface, USB
Onboard Memory	3 MB
Backlighting	Yes
Supply Voltage	24 V dc
Depth	27mm
Dimensions	113 x 74 x 27 mm
Maximum Operating Temperature	+55°C
IP Rating	IP2X, IP67F
Length	113mm
Minimum Operating Temperature	0°C
Width	74mm

GT21 Wide model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2107	GT2107-WTBD	7" WVGA	TFT color 65536 colors	Black	24 V DC	Wide model
GT2107	GT2107-WTSD	7" WVGA	TFT color 65536 colors	Silver	24 V DC	Wide model

GT21 model

Model		Screen size	Display section Display color	Panel color	Power	Remarks
GT2104	GT2104-RTBD	4.3" [480×272 dots]	TFT color 65536 colors	Black	24 V DC	Ethernet, RS-422/485, RS-232
GT2103	GT2103-PMBD	3.8" [320×128 dots]	TFT Monochrome (black/white) 32 shade grayscale 5-color LED (white, green, pink, orange, red)	Black	24 V DC	Ethernet, RS-422/485
	GT2103-PMBDS				24 V DC	RS-232, RS-422/485
	GT2103-PMBDS2				24 V DC	RS-232 × 2 channels
	GT2103-PMBLS				5 V DC	RS-422 (FXCPU connection only)
