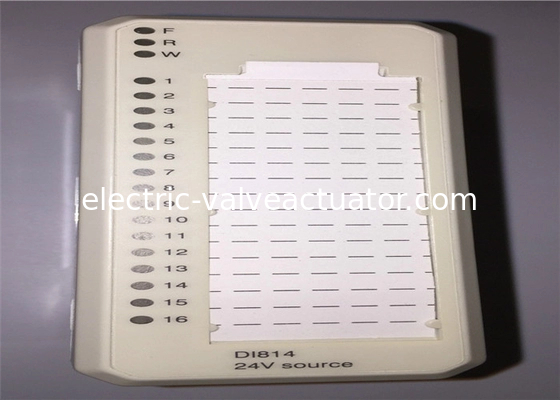

ABB DI814 3BUR001454R1 Digital Input 24V d.c. Current Source 2x8 ch,

Name: ABB DI814 3BUR001454R1 Digital Input 24V d.c. Current Source 2x8 ch,
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: DI814
Price: 210.00 USD
Availability: InStock

Markenbezeichnung:	ABB
Modellnummer:	DI814
MOQ:	1
Preis:	Negotiations

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Schweiz

Bewertete Isolierungs-Spannung:

50V

Dielektrische Prüfspannung:

500VAC

Stromaufnahme +5 V Modulebus:

70 mA

Leistungsdissipation:

1.6W

Verpackung Informationen:

Neue Originalbox

Hervorheben:

ABB DI814 digital input module

24V DC current source module

2x8 channel ESP controller

Beschreibung des Produkts

ABB DI814 3BUR001454R1 Digital Input 24V d.c. Current Source 2x8 ch

Key Specifications

Attribute	Value
Rated Insulation Voltage	50V
Dielectric Test Voltage	500VAC
Current Consumption +5 V Modulebus	70mA
Power Dissipation	1.6W

Product Description

The ABB DI814 3BUR001454R1 Digital Input module features an input voltage range of 18 to 30 volt DC with an input current source of 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group.

Every input channel includes current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input provides channel error signals if the voltage disappears. The error signal can be read through the ModuleBus.

Features and Benefits

16 channels for 24 V d.c. inputs with current sourcing
2 Isolated groups of 8 with voltage supervision
Input status indicators

Environment and Certification

CE mark	Yes
Electrical safety	IEC 61131-2, UL 508
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	ABS, BV, DNV-GL, LR, RS, CCS
Protection rating	IP20 according to IEC60529
Corrosive atmosphere ISA-S71.04	G3
Climatic operating conditions	0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree	Degree 2, IEC 60664-1
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4 and EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

General Information

Type	Digital Input
Signal specification	24 V d.c.
Article number	3BUR001454R1
Number of channels	16
Signal type	Current sourcing
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed Technical Data

Input voltage range, "0"	-30..5 V
Input voltage range, "1"	15..30 V
Input impedance	3.5 kΩ
Isolation	Groupwise isolated from ground, 2 groups with 8 channels
Filter times (digital, selectable)	2, 4, 8, 16 ms
Current limiting	Sensor power can be current limited by the MTU
Maximum field cable length	600 meters (656 yards)
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	Typ. 1.8 W
Current consumption +5 V Modulebus	50 mA
Current consumption +24 V Modulebus	0
Current consumption +24 V external	0
