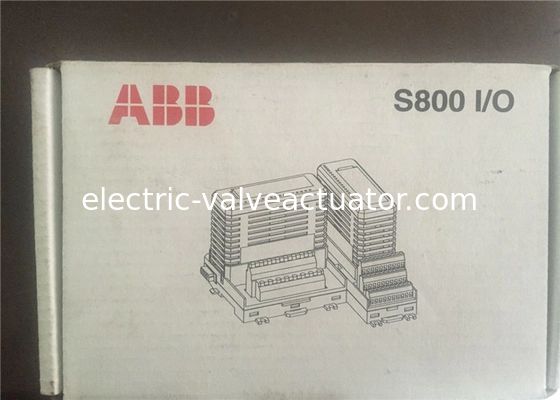

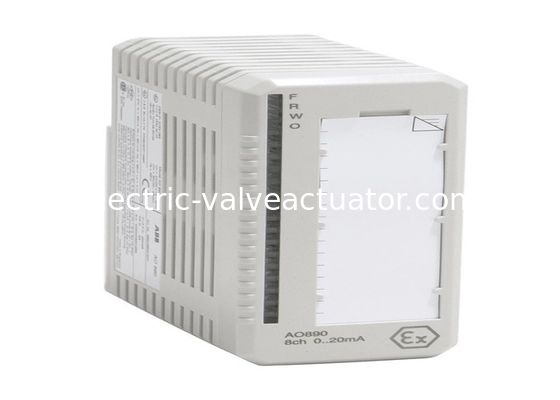

3BSC690072R1 AO890 | ABB | Analog Output Digital I O Module 0..20 mA, 4..20 mA

Name: 3BSC690072R1 AO890 | ABB | Analog Output Digital I O Module 0..20 mA, 4..20 mA
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AO890
Price: 210.00 USD
Availability: InStock

Markenbezeichnung:	ABB
Modellnummer:	AO890
MOQ:	1
Preis:	Negotiations

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

Schweiz

Bewertete Isolierungs-Spannung:

50V

Dielektrische Prüfspannung:

500VAC

Stromaufnahme +5 V Modulebus:

70 mA

Energieverschwendung::

1,5W

Verpackung Informationen:

Neue Originalbox

Hervorheben:

ABB analog output module 0..20 mA

digital I/O module 4..20 mA

ESP controller analog output module

Beschreibung des Produkts

3BSC690072R1 AO890 | ABB | Analog Output Digital I/O Module 0..20 mA, 4..20 mA

Key Specifications

Attribute	Value
Rated Insulation Voltage	50V
Dielectric Test Voltage	500VAC
Current Consumption +5 V Modulebus	70mA
Power Dissipation	1.5W

General Information

Type	Analog Output
Signal specification	0..20 mA, 4..20 mA
Article number	3BSC690072R1
Number of channels	8
Signal type	Unipolar single ended
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	Yes
Mechanics	S800

Technical Specifications

Resolution	12 bit
Isolation	Groupwise isolated from ground
Under/over range	0 / 22 mA
Output load	<725 ohms at 20 mA, no over-range <625 ohms at up to 22 mA
Error	Typ. 0.05%, Max. 0.1% at 650 ohms
Temperature drift	Typ. 50 ppm/°C, Max. 100 ppm/°C
Rise Time	1 ms (10% to 90%)
Current limiting	Short circuit proof current limited output
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	3.1 W
Current consumption +5 V Modulebus	80 mA
Current consumption +24 V Modulebus	Typ. 110 mA , Max. <150 mA
Current consumption +24 V external	Typ. 220 mA, Max. <300 mA

Certifications & Environmental Specifications

CE mark	Yes
Electrical safety	IEC 61131-2, FM
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	ABS, BV, DNV-GL, LR, RS, CCS
Protection rating	IP20 according to IEC 60529
Corrosive atmosphere ISA-S71.04	G3
Climatic operating conditions	0 to +55 °C (Storage -40 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2
Pollution degree	Degree 2, IEC 60664-1
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Intrinsic Safety Parameters

U0 (Groups CENELEC USA)	IIc
I0 (Groups CENELEC USA)	IIB
P0 (Groups CENELEC USA)	IIA
U0 - C0 (uF)	0.089
U0 -L0 (mH)	4.1
U0 -L/R (uH/O)	55
I0 - C0 (uF)	0.704
I0 -L0 (mH)	16.4
I0 -L/R (uH/O)	222
P0 - C0 (uF)	2.23
P0 -L0 (mH)	16.4
P0 -L/R (uH/O)	443
