Product Description

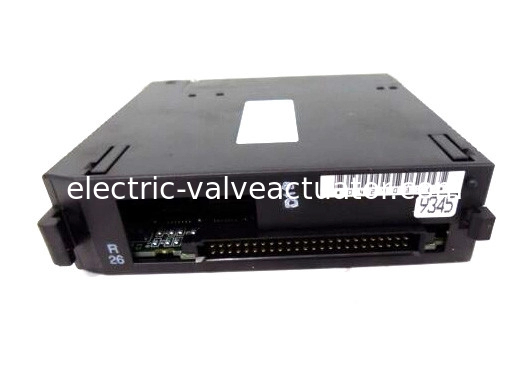

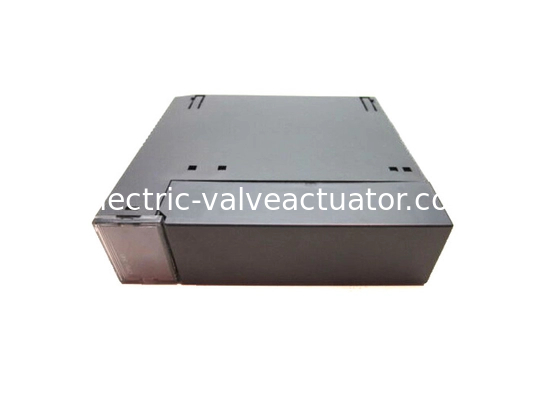

General: The IC693CPU341 module, a member of the GE Fanuc 90-30 Series, is a single slot CPU module which is equipped with 5 baseplates. It contains 4 remote and/or expansion baseplates in addition to the 1 CPU baseplate. It is equipped with an 80C188XL processor.

Power: It runs at 20 MHz and requires a load of 490 milliamps from the +5 VDC rated power supply. The module operates at an ambient temperature range of 0 to 60 degrees Celsius (or 32 to 140 degrees Fahrenheit).

Memory: This CPU’s typical can rate is 0.3 milliseconds per 1K of logic (also known as Boolean contacts). With a maximum user program memory of 80K bytes, the IC693CPU341 has a register memory (%R) of 9999 words; discrete global memory (%G) of 1280 bits, internal coils (%M) of 1024 bits, output (temporary) coils (%T) of 256 bits, and system status references (%S) of 128 bits (with %S, %SA, %SB, %SC having 32 bits each).

I/O: Analog inputs (%AI) and outputs (%AQ) is 1024 and 256 words respectively. The discrete input (%I) and output (%Q) are 512 each. It has 16 words (%SR) system registers which are used for reference table viewing only and cannot be referenced in user logic program.

Specific: This CPU has a singular built-in serial port, which requires a connector to the PLC power supply used in the system. The port supports SNP/SNP-X slave protocols. The IC693CPU341 has PCM/CCM compatibility, although, it does require a CMM module in order to support SNP/SNP-x master, CCM, or RTU slave support. It also requires a PCM module to support RTU master.

LAN: IC693CPU341 has a Local Area Network (LAN) installed. This feature allows the CUP to support a variety of option modules, such as FIP, Profibut, multidrop, Ethernet, GBC, GMC and GCM+ option modules. Its early versions have RAM and optional EPROM or EEPROM for memory storage. New versions, starting with hardware version IC693CPU341-J and firmware Release 4.61, only supports RAM and optional Flash for additional memory needs.
