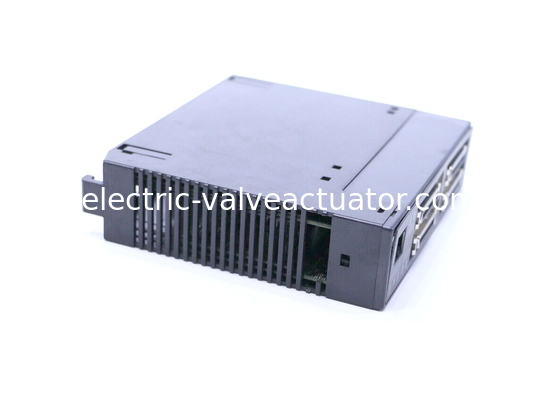

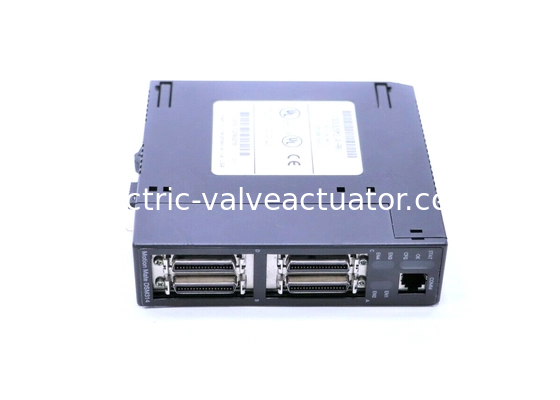

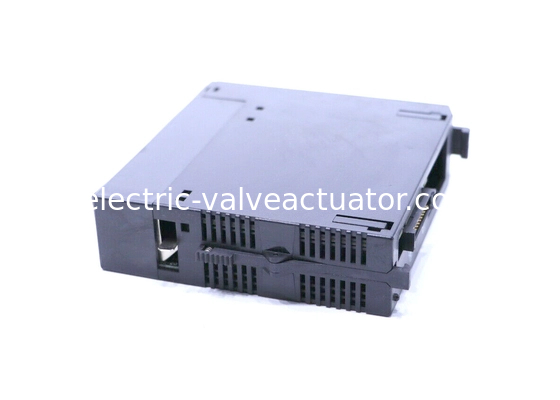

4 Axis CPU PLCs Digital Servo Module GE FANUC IC693DSM314 90-30 Series

Name: 4 Axis CPU PLCs Digital Servo Module GE FANUC IC693DSM314 90-30 Series
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC693DSM314
Price: 210.00 USD
Availability: InStock

Markenbezeichnung:	GE
Modellnummer:	IC693DSM314
MOQ:	1
Preis:	Negotiations

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

USA

Serie:

Serie 90-30

Produkttyp:

Bewegungs-Steuereinheit

Kompatible Komponenten:

PLCs

Betriebsmodi:

Digital, analog

Anzahl der Achsen:

Betriebstemperatur:

0 bis 60 Grad Celsius

Verpackung Informationen:

Neue Originalbox

Hervorheben:

4 Axis CPU PLC module

GE FANUC IC693DSM314 servo module

90-30 Series digital servo controller

Beschreibung des Produkts

4 Axis CPU PLCs Digital Servo Module GE FANUC IC693DSM314 90-30 Series

GE FANUC IC693DSM314, Digital Servo Module, 90-30 Series CPU

Product Description

The Motion Mate Digital Servo Module IC693DSM314 by GE Fanuc operates as a motion control module for the 90-30 series. This module functions in two modes: digital mode and analog mode. Digital mode is designed for compatibility with digital servos while analog mode must be used to control servos that feature analog command input.

Compatible with Series 90-30 CPUs with firmware release 10.0 or later (not compatible with CPU311 through 341 and 351)
Non-volatile storage for 10 programs and 40 subroutines
Block processing time under 5 milliseconds
Automatic data transfer between PLC tables and DSM314 without user programming
Home and overtravel switch inputs for each Servo axis
User scaling of programming units in both Standard and Follower modes
Velocity feed forward and position error integrator to enhance tracking accuracy
Quadrature encoder input for follower master axis
Recipe programming using command parameters for velocity, move, acceleration, and dwell commands
Incremental quadrature encoder input on each axis for encoder/analog mode
5V, 24V and analog I/O for use by PLC
High-speed digital output (four each 24V and four each 5V) via on board Local Logic Control
13-bit Analog Output can be controlled by PLC or used as Digital Servo Tuning monitor
High resolution programming units with precise position, velocity, and acceleration ranges
Single point of connection for all programming and configuration tasks
Controls GE Fanuc α Series and β Series Digital servos, SL-series servos, or third-party servos
Position Capture Strobe Inputs with ±2 counts accuracy plus 10 microseconds variance

Technical Specifications

Brand	GE Fanuc
Series	Series 90-30
Part Number	IC693DSM314
Compatible components	Programmable logic controllers
Operation modes	Digital, analog
Block processing time	Less than 5 milliseconds
Number of axis	4
Programming units resolution (position)	-536,870,912 to 536,870,911 user units per second
Programming units resolution (velocity)	1 to 8,388,607 user units per second
Programming units resolution (acceleration)	1 to 1,073,741,823 user units per second
Non-volatile storage	10 programs and 40 subroutines
Backplane current consumption	450 milliAmps at 5 Volts DC (typical)
Operating temperature	0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage temperature	-40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
