DR-054 15kvar Power Capacitor with Reactor Filter Bank

Name: DR-054 15kvar Power Capacitor with Reactor Filter Bank
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: DR-054
Price: 210.00 USD
Availability: InStock

Markenbezeichnung:	OEM
Modellnummer:	DR-054
MOQ:	1
Preis:	Verhandlungsfähig

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Nennspannung des Systems:

400 V-750 V

Nennspannung:

400 V-750 V

Verpackung Informationen:

Neue Originalverpackung

Beschreibung des Produkts

DR-054 15kvar Power Capacitor with Reactor Filter Bank

The DR-054 15kvar Power Capacitor with Reactor Filter Bank is an integrated high-performance power compensation and filtering device designed to improve power quality, reduce energy loss, and protect electrical equipment in industrial and commercial power systems.

Product Overview

With a rated reactive power of 15kvar, this system combines power compensation and harmonic filtering functions into a complete filter bank that works seamlessly to optimize grid operation. The integrated design provides dual functionality for reactive power compensation and harmonic filtering.

Technical Features

Power capacitor uses high-quality metallized polypropylene film dielectric
Low dielectric loss with excellent insulation performance
Strong overvoltage resistance capabilities
Hermetically sealed with high-strength aluminum alloy shell
Filled with environmentally friendly insulating oil for optimal heat dissipation
Matching reactor uses dry-type iron core structure
Constructed with low-loss cold-rolled silicon steel sheets
Coils wound with F-class high-temperature enameled wire
Stable inductance performance with low operating noise

Performance Benefits

Effectively compensates for reactive power in the power grid
Improves power factor to above 0.95
Reduces line loss and transformer load
Lowers electricity costs through improved efficiency
Suppresses high-order harmonics (3rd, 5th, 7th) from nonlinear loads
Prevents harmonic amplification and resonance
Protects capacitors, transformers and other electrical equipment

Technical Specifications

Rated Power: 15kvar

Protection Grade: IP20

Standards: IEC 60831-1, GB/T 12747

Applications: Industrial workshops, commercial buildings, power distribution rooms

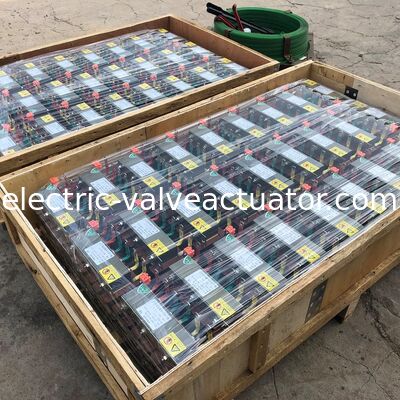

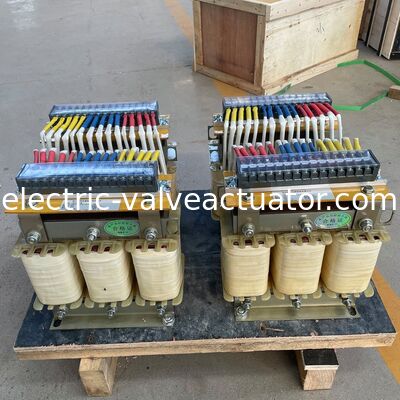

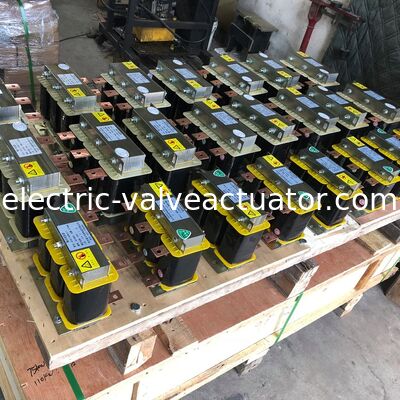

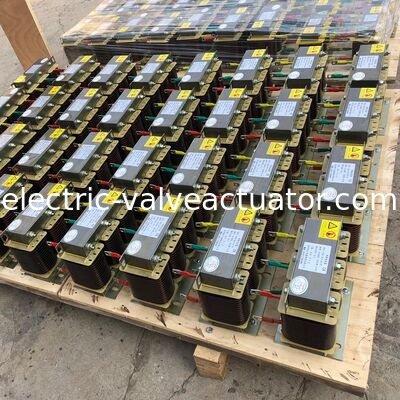

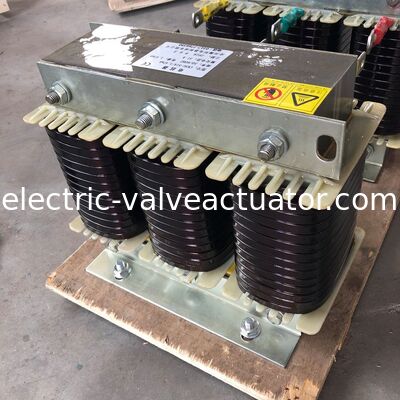

Product Image
